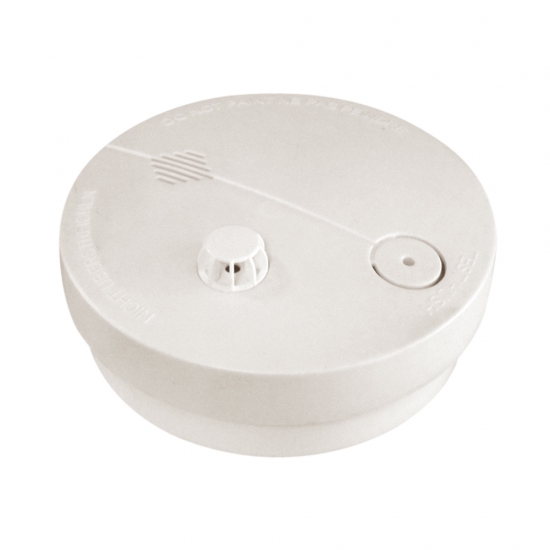

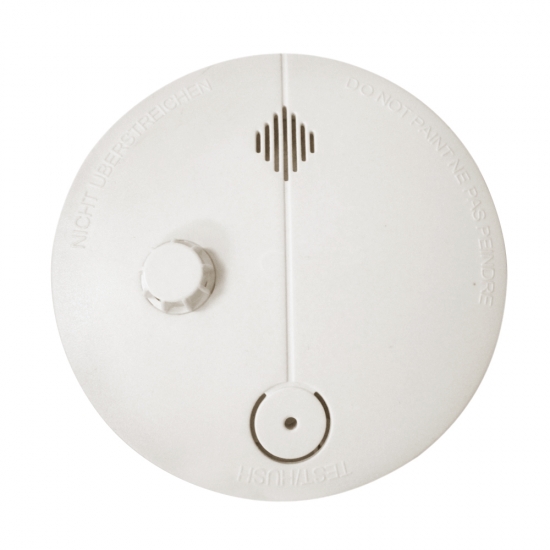

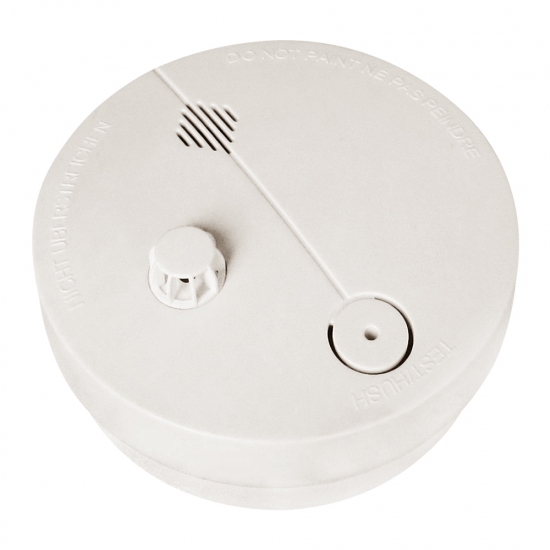

Combined smoke and heat detector PW-560SH

Item Num :PW-560SH
Shipping Port :ningbo
Original Region :china
Price: 0
CONTACT NOW

Product Details

The PW-560SH Stand-alone smoke and heat detector was designed with precise Microprocessor control integrating both Rate of Riseand Fixed temperature heat detectors. It could be one of the best heat detectors available in the market. It's perfectlysuitable for installation in all environment especially in the kitchen, garage, factory etc. The PW-560 series meetEN54-5 or UL521 standards.

Product Features:

Electronic thermistor sensing technology.
Standard quality to provide accuracy and stability
Uses a microprocessor for circuit control to assure performance stability and reliability
Loud alarm signal exceeding 85 dB at 3m
Test button to verify operation
Easy installation and maintenance.
Hush button, to stop the alarm from sounding.
Complying with EN54-5 and UL521 standard.
Five-year limited warranty.

Technical Specifications:

Power Supply	DC 9V Battery
Operating Temperature	-5^oC -+40^oC
Relative Humidity	15% -90%, no condensing
Alarm Indication	Audible and visual alarm
Buzzer Output	>85dB at 10 feet
Dimensions	102mm(D) x 43mm (H)
Test Facility	yes
Interconnection option	Up to 11 additional detectors
Sensitivity	Meet UL521 or EN 54-5
Response Temperature:	Fixed termperature: 57°C (135°F)
Response Temperature:	Rate-of-Rise function :>6.7°C(20°F) per minute
